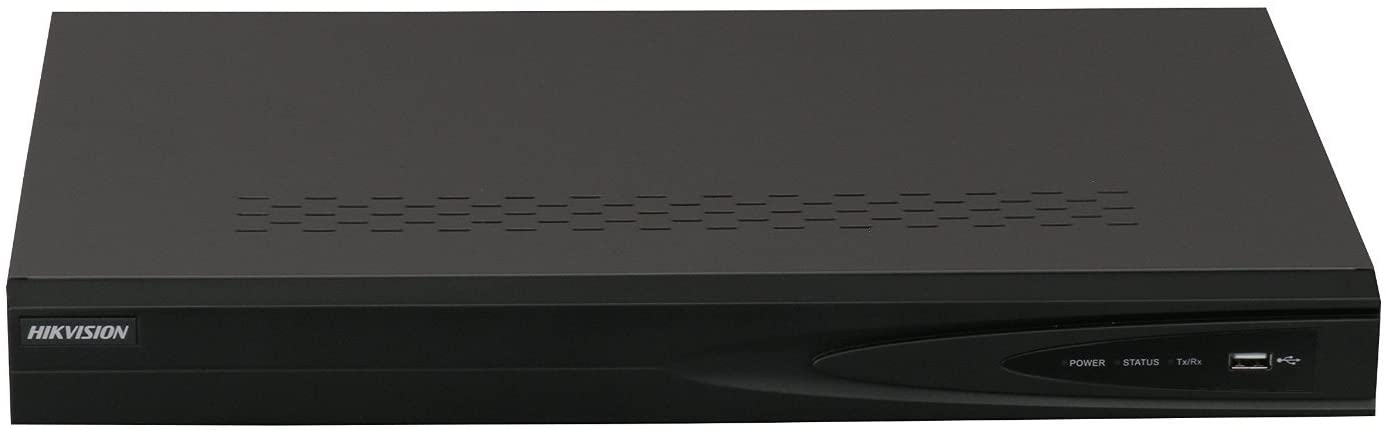

HIKVISION DS-7608NI-E2/8P 8CH PoE NVR Network Video Recorder

• Live View from iPhone/Android or Internet
• Third-Party network cameras supported
• HDMI and VGA output at up to 1920×1080P Resolution
• 8 Independent PoE Network Interfaces, Up to 5 MP Resolution Recording
• Note: Hard Drive is not included in Package

HIKVISION DS-7608NI-E2/8P 8CH PoE Network Video Recorder

Features:

Live View from iPhone/Android or Internet

Up to 5 MP Resolution Recording

HDMI and VGA output at up to 1920×1080P Resolution

HDD Quota and group management

Third-Party network cameras supported

8 Independent PoE Network Interfaces

Specifications:

Video/Audio Input

IP Video Input: 8-ch

Two-way Audio: 1-ch RCA(2.0Vp-p, 1kΩ)

Video/Audio Output

Decoding resolution: 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF HDMI / VGA Output: 1CH Resolution: 1920×1080P/60Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz

Audio Output: 1-ch RCA(Linear, 1kΩ)

Playback Resolution: 5MP /3MP / 1080P / UXGA / 720P / 4CIF / VGA / DCIF / 2CIF / CIF / QCIF

Synchronous Playback: 8-ch

Interface Type: 1 SATA Interface

Capacity: Up to 4TB capacity for each disk

Network Interface: 1 RJ45 10M/100M/1000M adaptive Ethernet Interface, /N models support 4 independent 10/100 Mbps Ethernet interfaces for built-in switch

USB Interface: 2 USB 2.0 Interfaces

Serial Interface: 1 RS-485 interface (Reserved)

Power Supply: 12 VDC

Consumption: ≤ 10 W (without hard disk)

Working Temperature: -10 °C ~ +55 °C

Working Humidity: 10% ~ 90%

Chassis: Stand-alone 1U chassis

Package Includes:

1 x HIKVISION DS-7608NI-E2/8P 8CH PoE NVR

1 x Mouse

1 x AC Power Adapter

1 x Installation Screws

1 x Data Cables

1 x English User Manual

1 x U.S. Retail Color Packaging

Note: Hard Drive is not included in Package
